High-Speed Liquid Milk Packaging Machine Pouch Film Plastic for Food Chemical Applications Core PLC Component Filling Sealing
- Overview
- Recommended Products

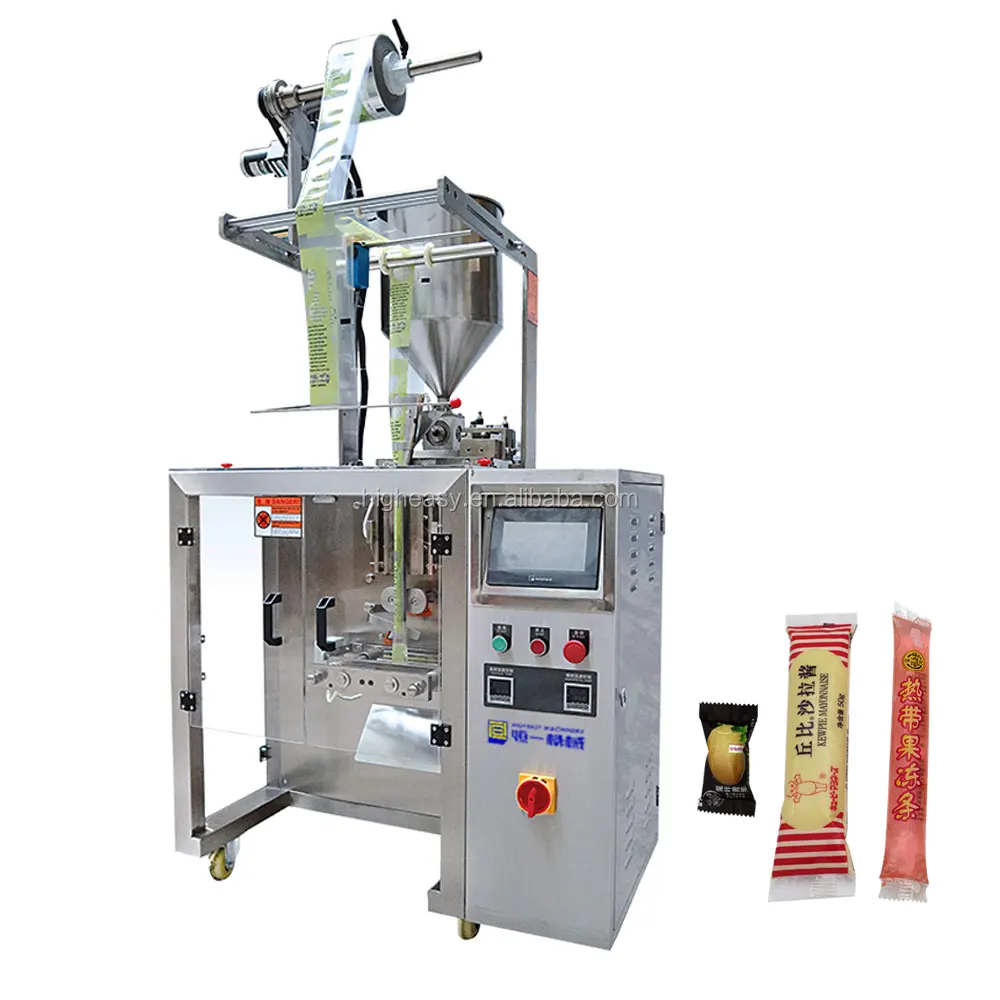

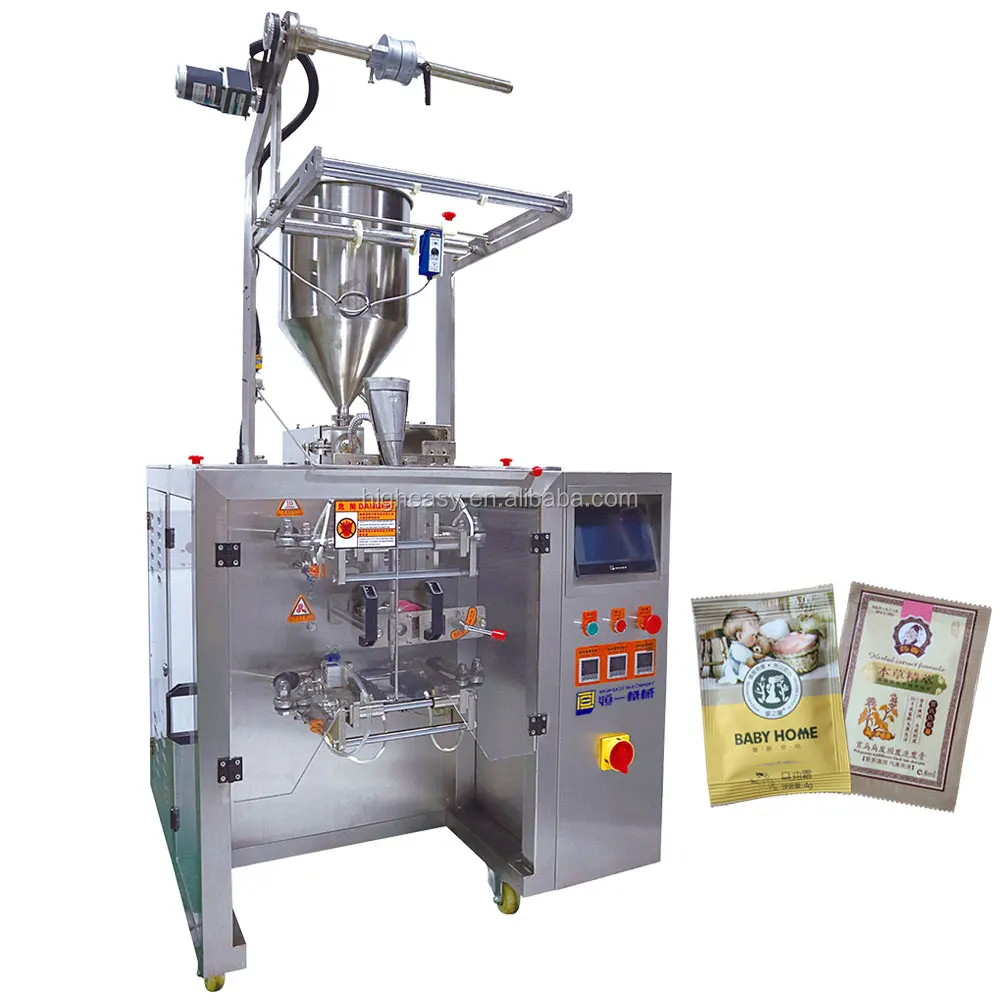

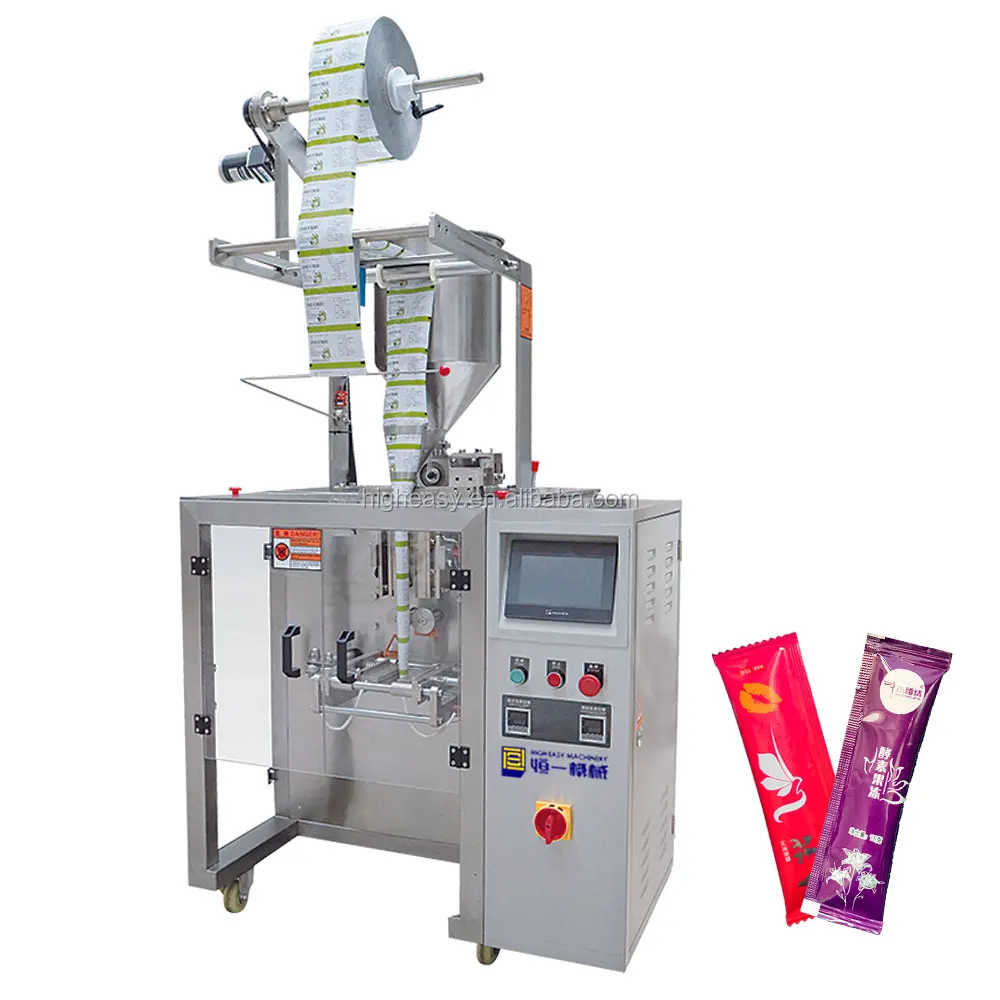

Automatic Soup Sauce Shampoo Juice Soy Yoghort Chilly Honey Sachet Packing Machine
♦It is suitable for the packaging of different liquid and paste product, such as soup, sauce, shampoo, beverage, soy sauce ,chilly ,yoghurt, honey, syrup and juice etc.
♦The machine adopts servo motor, PLC and touch screen intelligent control system. Stable performance and easy operation. Volume measuring device adopts servo screw piston pump, pneumatic piston pump , machanical piston pump. The filling volume is accurate and the adjustment is convenient.
♦Special bag making system, pneumatic and servo combination, to ensure the packaging product bag appearance smooth, beautiful, improve the added value of the product. Cutters can be customized according to customer requirements, round corner, teeth , tooth form or other special shape.
| Seal & cutting method | Back seal, 3-side seal, 4-side seal |
| Packing Speed(bag /minute) | 20/50 |
| Bag Size (mm) | Lenght: 20-200 Width: 20-100 |
| Maximum external diameter of film roll (mm) | ≤∅450 |
| Maximum width of film(mm) | 200 |
| Wrapping film thickness(mm) | 0.05-0.10 |
| Total Power(KW) | 3.5 |
| Voltage(V) | 220v/50Hz |
| Filling range(ml) | 5-150, 150-500,500-1000ml |
| Air consumption(m3/min) | 0.23 |
| Machine size(mm) | 970*900*2250 |
| Machine weight(kg) | 350 |
