Factory Price Granule Powder Fluid Stand up Pouch Filling and Sealing Machine
This factory price granule powder fluid stand up pouch filling and sealing machine is a multi-functional automatic device, suitable for various stand-up pouches. It realizes precise filling, fast sealing and stable operation, with adjustable parameters, easy operation and low maintenance, ideal for food, chemical and daily chemical industries.
- Overview
- Recommended Products
Application & Features
1) This machine fully replaces traditional manual packaging and achieves full automation of the entire packing production process. It greatly boosts production efficiency by optimizing the packaging workflow and slashes overall production costs significantly. With a user-friendly design, the whole device can be operated by a single person, which eliminates the need for multiple operators and thus reduces labor costs substantially for enterprises in daily production.
2)This machine is standard equipped with a professional automatic monitoring system that acts as its intelligent control core. The system can accurately judge the real-time running state of the whole equipment by monitoring key operational indicators, including air pressure stability, temperature controller operation status and whether the packaging bag is properly opened. Once an abnormality is detected, it will instantly and precisely control the operating actions of the material filling device and hot sealing device, adjusting or pausing relevant processes in a timely manner. This precise regulation effectively avoids invalid packaging caused by equipment faults or improper bag placement, thoroughly reducing the waste of packaging materials and raw materials, and further helping enterprises cut down production costs and improve production efficiency.
There is a filling inspection device. No bag no filling, No sealing to empty bag. This device is helpful to reduce waste for material and package and pollution to the machine. It can be washed by water. The packaging machine has double doors made of organic glass plate.
Material:
1) cam of driving system is made of forging steel 45#. It hardness is not less than HR50 after heat treatment.
2) Shift is made of steel 45#. The surface is grinded smooth. It is durable and wear resistant;
3) Side plates and guide rod is die casting parts which has high intensity and long life span.
The whole surface is anti-corrosion treated.
4) The platform of the machine is made of food grade SS304 plate in the thickness of 2mm, which makes it easy to clean;
5) Devices for bag placing, bag opening, sealing, gripping and the gripper are made of food grade SS304.
6) electrical box is made of food grade SS304 in the thickness of 2mm. It is water proof. The whole platform surface can be washed with water.
Electric Appliance Brand
Name |
brand |
Touch screen |
Germany Siemens 10 inch |
Frequency converter |
Germany Siemens |
PLC |
Germany Siemens |
Magnetic valve |
Germany Festo |
Cylinder |
Germany Festo |
button,contactor |
Siemens |
Intermediate relay |
Japan IDEC |
Solid state relay |
Germany MAGER |
Vacuum pump |
Japan ORTON |
Filling device

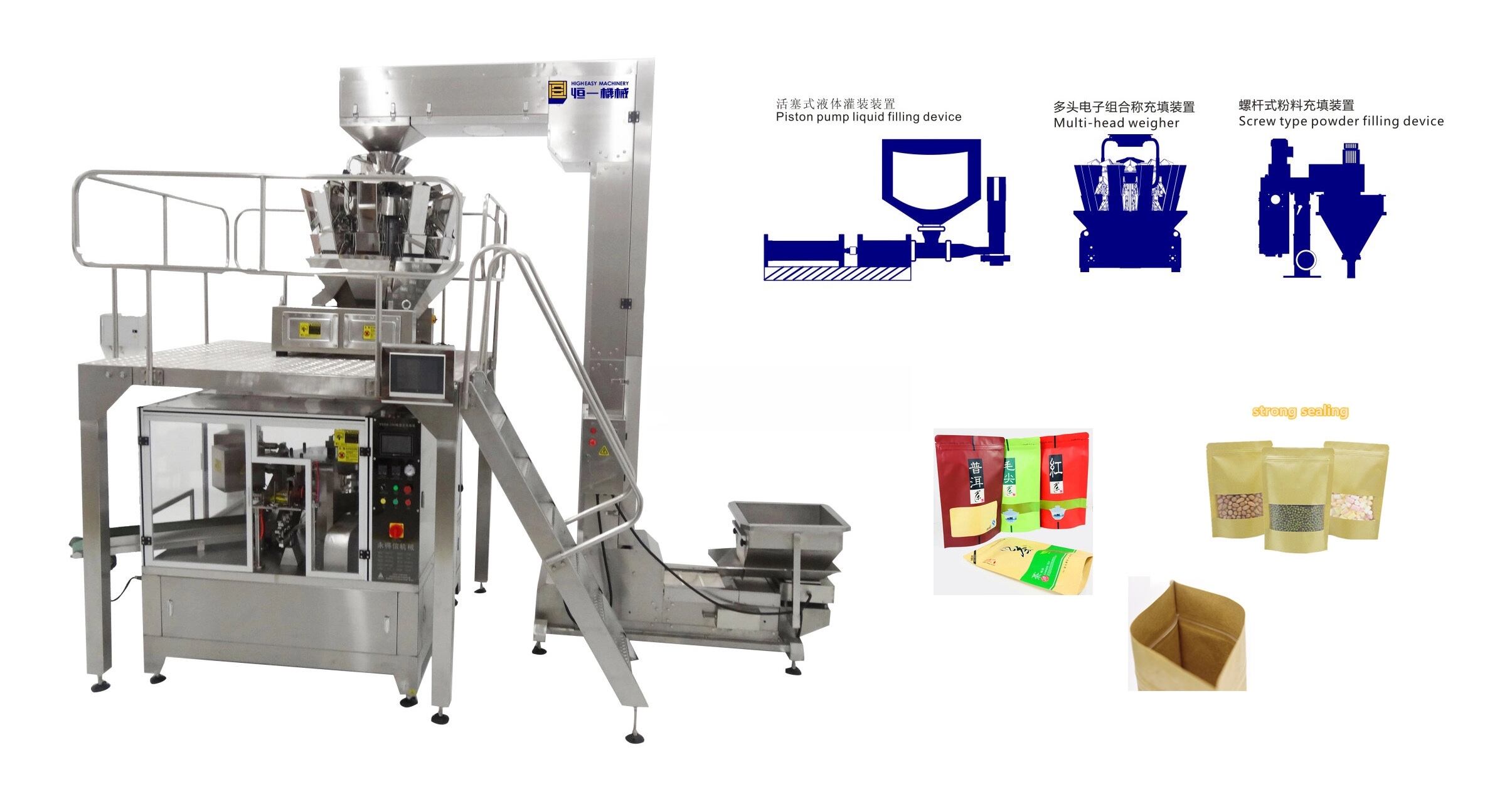

Basing on different material, adopt different ways of the feeding device such as turntable, multi-head weigher, tip bucket, tablet counting device, screw, piston pump and so on.
Technical Parameters
model |
HY-8PC |
weight |
1200kg |
packaging specification |
Bag width:100-220mm bag length:100-300mm |
Total power |
3KW |
Bag placing form |
bottom bag taking |
Bag type |
flat bag |
Sealing type |
double seal |
size |
1550mm*1350mm*1400mm (H) |
Job description |
1. bag 2. transition 3. bag opening 4. filling 5. transition 6. seal 7.seal 8.output |
Processing
Company Information
Shantou Higheasy Machinery Co.,Ltd is a manufacturer specializedin various foodstuff machinery and packing machinery, integratesautomatic packaging system development, engineering, production,installation and maintenance, with more than 25 years ofaccumulated experience in packaging machinery industry, Higheasyhas owned the most advanced production equipments and abundantproducing experience and high talent R&D team in the field ofautomatics. The team of famous senior mechanical engineers andjunior technicians has become the assurance of strong R&Dengineering and maintenance through modern management.
FAQ
Q1: Can the machinery be customized?
A1: Yes. We can customize the core configurations of the equipment such as the number of filling heads, feeding method and sealing form according to your product form (such as liquid, paste, solid), packaging specifications (such as bottle, bag, can) and production capacity requirements.
Q2:How long is the delivery time of the equipment?
A2:The delivery time for regular standard models is 15–20 working days, and for customized models is 30–45 working days.
Q3:Payment term
A3:By T/T, 30% before production, 70% before shipment
Q4:How long is the warranty period of the equipment?
A4:One year
Q5:How is the maintenance cost calculated after the warranty period?
A5: Lifelong maintenance is provided after the warranty period, charging the cost of spare parts and reasonable on-site service fees.
Q6:Can your equipment be adapted to our existing production line?
A6:We will first evaluate your production line parameters and process requirements, and then make targeted adjustments to the equipment.
